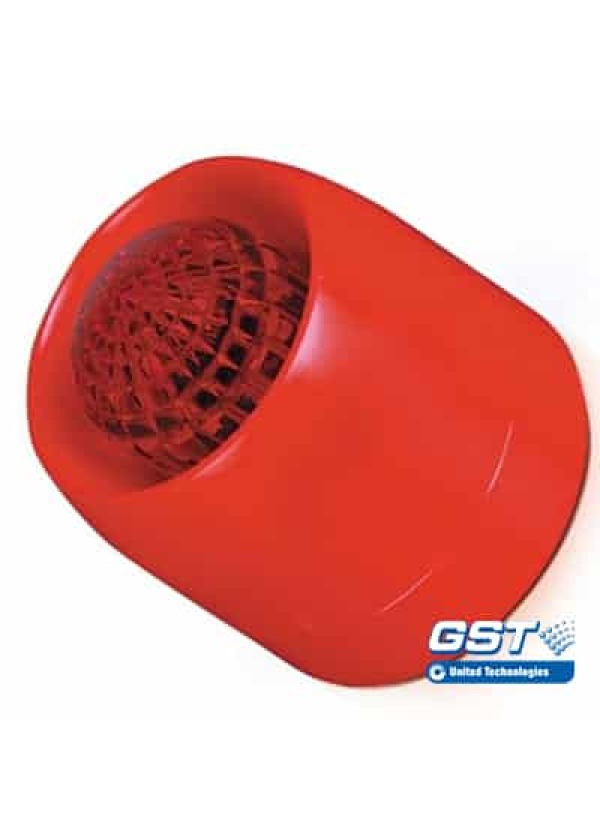

GST Fire I-9403 Intelligent Siren + Flaşör

I-9403 Intelligent Sounder Strobe
Feature
☆ Two parts construction with base mounted termination allows easy installation
☆ 16 programmable alarm tones
☆ Optional Evacuate + Alert mode
☆ Strobe provided by high intensity LED cluster
☆ Switch off Light or Sound output for special applications
☆ Optional loop powered or external 24VDC powering
☆ Optional power saving mode or hi-consumption mode
☆ Electronically addressed
☆ LPCB Approved
Technical Specifications
☆Operation Voltage: 24VDC Loop, 24VDC Power Supply
☆Operating Current:
Power saving mode / Loop powered
Loop: Standby Current 2mA, Alarm Current 9mA
Power saving mode / 24VDC powered
Loop: Standby Current 1mA, Alarm Current 2mA
Power Supply: Standby Current 1mA, Alarm Current 9mA
Hi-consumption mode / Loop powered
Loop: Standby Current 2mA, Alarm Current 35mA
Hi-consumption mode / 24VDC powered
Loop: Standby Current 1mA, Alarm Current 2mA
Power Supply: Standby Current 1mA, Alarm Current 35mA
☆Sounder Output: 98dB @ 1 Meter (Tone #16, 24VDC, hi-consumption)
☆Protection Rating: IP33
☆Wiring: Non-polarized 2-core for loop
Non-polarized 2-core for power supply
☆Operating Environment:
Temperature: -10℃ ～+50℃
Relative Humidity: 95%
☆Dimension: Diameter 110mm, Height 83mm (shallow base)
